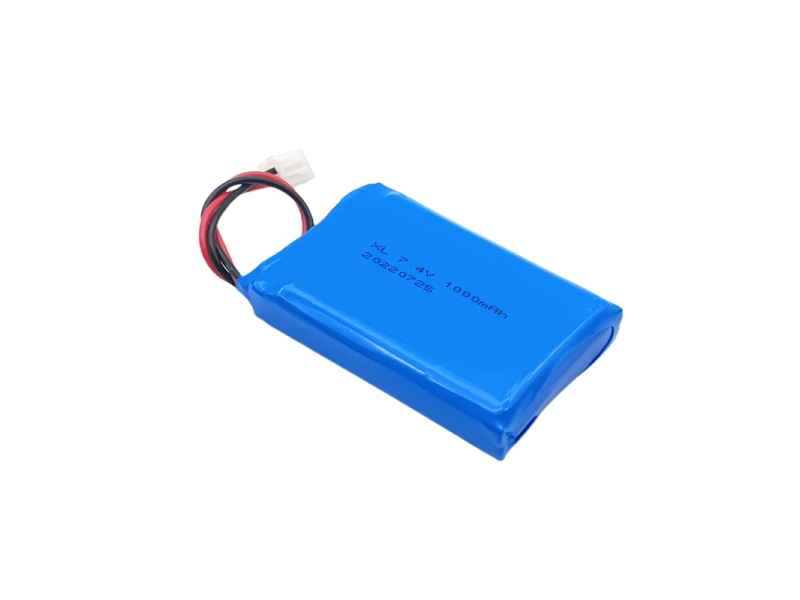

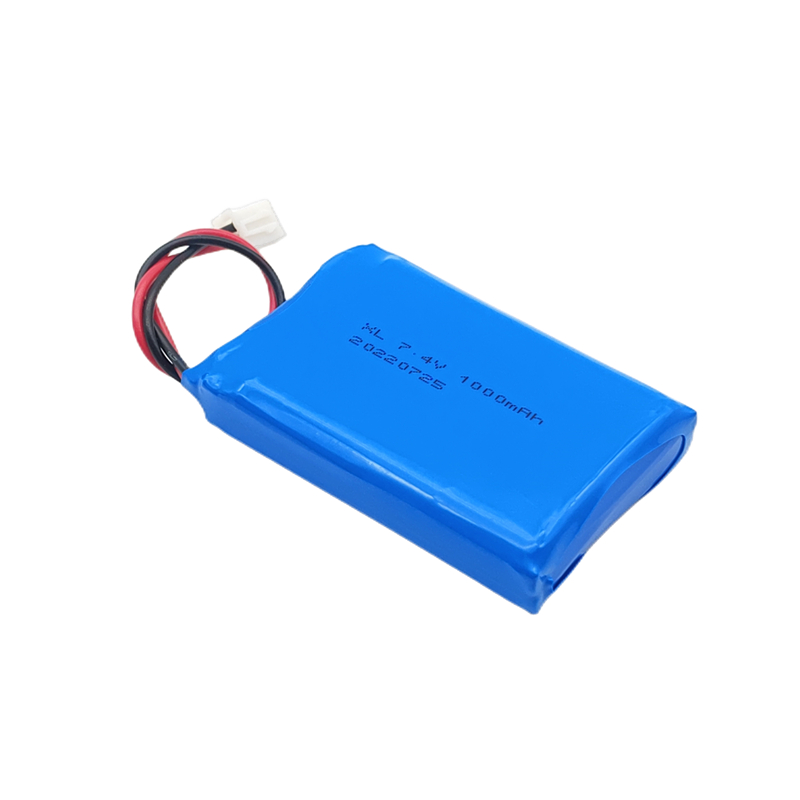

7.4V polymer lithium battery | 523450 1000mAh 7.4V-2pin
7.4V polymer lithium battery Product model: XL 1000mAh 7.4V
  7.4V polymer battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
  Single battery model: 523450
  Packing method: stock
  Wire model: UL1007 24AWG
7.4V polymer lithium battery Product model: XL 1000mAh 7.4V
7.4V polymer lithium battery technical parameters (specifically can be designed according to customer requirements - voltage/capacity/size/circuit)

Single battery model: 523450
 · Single battery voltage: 3.7V
 · Nominal voltage after battery pack combination: 7.4V
 · Single battery capacity: 1000mAh
 · Battery combination: 2 series and 1 parallel
 · Battery voltage range after combination: 6.0V~8.4V
 · Combined battery capacity: 1000mAh
 Battery pack power: 7.4W
 · Battery pack size: 10.4*34.5*53mm
 · Maximum discharge current: <1A
 · Instantaneous discharge current: 2A~3A
 · Maximum charging current: 0.2-0.5C
 · Charge and discharge times: > 500 times
 · Main chips: (Seiko, TI)
  7.4V polymer lithium battery
 · Comply with relevant national standards and requirements for batteries
 · The finished battery has been calibrated and tested before leaving the factory. It can be used directly and normally
